201 Perforated Stainless Steel Sheet 4×8

201 stainless steel perforated sheet is an economical austenitic material with a lower nickel content than 304 stainless steel. Its price is 20%-30% lower than the same specification 304 perforated sheet. It is suitable for protection and filtration in indoor workshops, warehouses, and dry areas.

201stainless steel perforated sheet metal has good ductility and is usually non-magnetic. It is suitable for laser/stamping batch perforation. The aperture is 0.5-20mm optional (error ≤0.1mm), and the opening rate is 5%-60% adjustable. 4×8 large specifications reduce the number of splicing times.

201stainless steel perforated mesh sheet is in great demand in many industries such as food and beverage, chemical, construction, automobile, cement plant and construction. We provide SS perforated sheet in standard and customized forms. If you plan to buy this perforated sheet, please contact us now for a free quote.



We offer 201 stainless steel perforated plates in a variety of thicknesses, gauges, grades and sizes.

Stainless Steel 201 Hot Rolled Perforated Sheets

Stainless Steel 201 cold Rolled Perforated Sheets

Polished stainless steel 201 perforated sheet,
Decorative stainless steel 201 perforated sheet, etc.

Production	Cold-rolled
Standard	ASTM A240/A480
Thickness	Min: 0.4mm Max: 6.0mm
Width	1000mm, 1250mm, 1500mm, 2000mm, Other sizes on request
Finish	2B, BA, MATT, M.PVC, N4, N5, SB, HR, N8, Oil base wet polished, Both sides polished available
Coating	PVC coating normal/laser Film: 100 micrometer Color: black/white

Chemical Composition of Stainless Steel 201 Perforated Sheet

Carbon	Manganese	Sulfur	Phosphorus	Silicon	Chromium	Nickel	Nitrogen
0.15x	5.5 – 7.5	0.03X	0.060x	1.0 x	16 – 18	3.5 -5.5	0.25x

Stainless Steel 201 Perforated Sheet Physical Properties

Density (lb./ in^2) @ RT		0.283
Modulus of Elasticity in Tension (psi x 10^6)		28.6
Specific Heat (BTU/o F/lb.)	32 to 212 oF	0.12
Thermal Conductivity (BTU/hr/ft^2/ft)	212oF	9.4
Mean Coefficient of Thermal Expansion (in. x 10^-6 per o F)	32 to 212oF	8.7
	32 to 600oF	9.7
	32 to 1,000oF	10.2
Electrical Resistivity (micro ohms – cm)	at 70oF	69

GNEE supplies 201 stainless steel perforated plates in wooden boxes and crates to ensure that the product quality is not compromised during transportation to various shipping locations.
In addition, we also pass various experiments and quality inspections, and the products are accompanied by inspection certificates to ensure that customer needs are met to the greatest extent.


SS 201 perforated sheet price

The price of SS 201  Perforated Plate depends on the thickness, hole pattern and plate size. For an accurate and competitive quote, contact a trusted supplier such as Gnee Stainless Steel at info@gneestainless.com with your specific requirements.

Q: Can 201 perforated sheets be used outdoors?
A: Yes, but only in non-corrosive or mildly corrosive environments, as 201 stainless steel is less resistant to rust than 304 or 316.

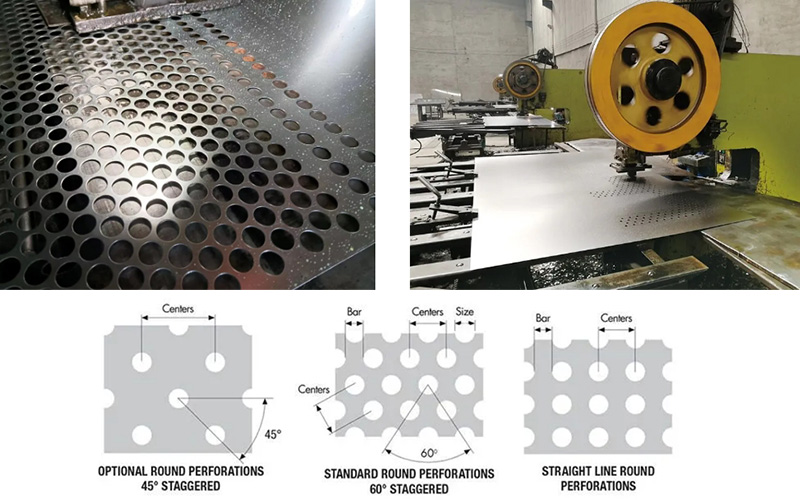

Q: What hole patterns are available?
A: Popular patterns include round, square, slotted, and custom-designed holes, with various pitch and margin options.

Q: Is 201 stainless steel magnetic?
A: Yes, 201 stainless steel may exhibit some magnetism, especially after cold working.

Q: How thick is a typical 201 perforated sheet in 4×8 size?
A: Thicknesses typically range from 0.5 mm to 3.0 mm, depending on the application.

Q: Can 201 perforated sheets be welded or bent?
A: Yes, 201 stainless steel has good weldability and formability, suitable for fabrication processes.
