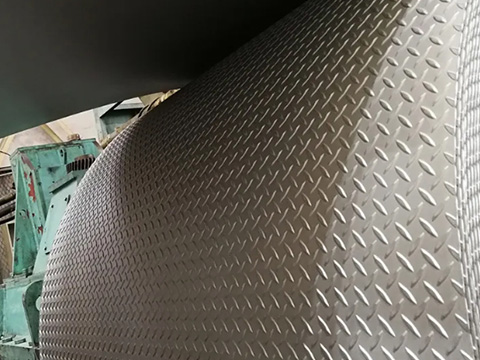

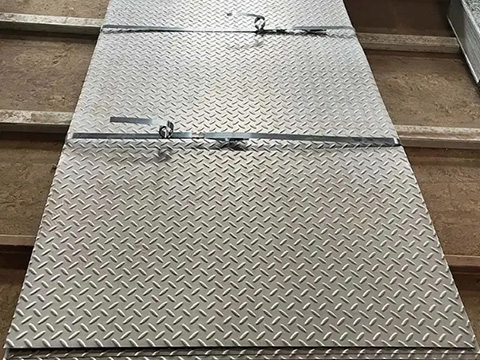

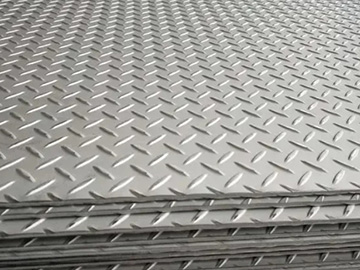

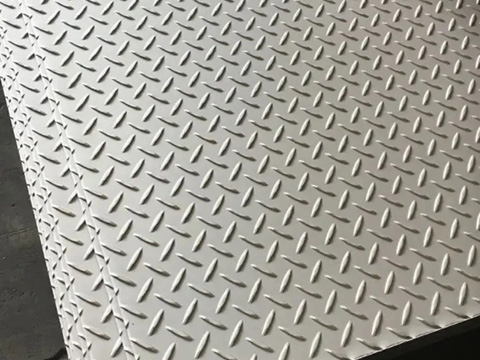

The diamond/lentil-shaped pattern design on the surface of ss 304L chequered plate increases the friction coefficient by more than 40%. In a wet environment, the friction coefficient is ≥0.5, which is far higher than that of flat stainless steel. It effectively reduces the risk of slipping on stair treads and operating platforms and meets industrial safety standards.
304L stainless steel chequer plate contains 18% chromium and 8-10% nickel. It can resist corrosion from humid atmosphere, weak acid and alkali (such as food-grade organic acid), fresh water, etc. In environments such as beverage factory floors and humid workshop platforms, its service life is 3-5 times longer than that of carbon steel chequered plates, and its surface is not easy to rust.
The plasticity of 304L stainless steel diamond tread plate is better than that of duplex steel. It can be easily processed by cutting, bending, stamping, etc. It supports customization of thickness from 1.5 to 8 mm, and the pattern depth is uniform (0.5 to 2 mm, which can meet various customer needs.
| Item | Specification |
|---|---|
| Grade | AISI 304L / EN 1.4307 / UNS S30403 |
| Standard | ASTM A240 / ASTM A793 / EN 10088-2 |
| Surface Pattern | Chequered / Diamond / 5-Bar / Tear Drop |
| Finish Options | No.1 (hot rolled) + Pattern, 2B + Embossed, Pickled Surface |
| Thickness Range | 2.0 mm – 8.0 mm |
| Width Range | 1000 mm – 1500 mm |
| Length Range | 2000 mm – 6000 mm |
| Tolerances | As per ASTM A480 / EN ISO 9445 |
| Thickness (mm) | Size (mm) | Finish | Price (USD/ton) | Notes |
|---|---|---|---|---|
| 3.0 – 4.0 mm | 1250 x 2500 | No.1 + pattern | $2,600 – $2,800 | Standard hot-rolled + tear drop pattern |
| 5.0 – 6.0 mm | 1500 x 3000 | No.1 + pattern | $2,700 – $2,900 | Common for industrial flooring |
| 6.0 – 8.0 mm | Custom sizes | No.1 + pattern | $2,800 – $3,000 | Heavy-duty platform applications |
In addition, we also provide 304L checker plate 4x8, 304L stainless steel perforated plate, 304Lstainless steel diamond plate.
At Gnee Stainless Steel, we specialize in providing custom-cut 304L stainless steel tread plates for industrial, architectural, and commercial use.

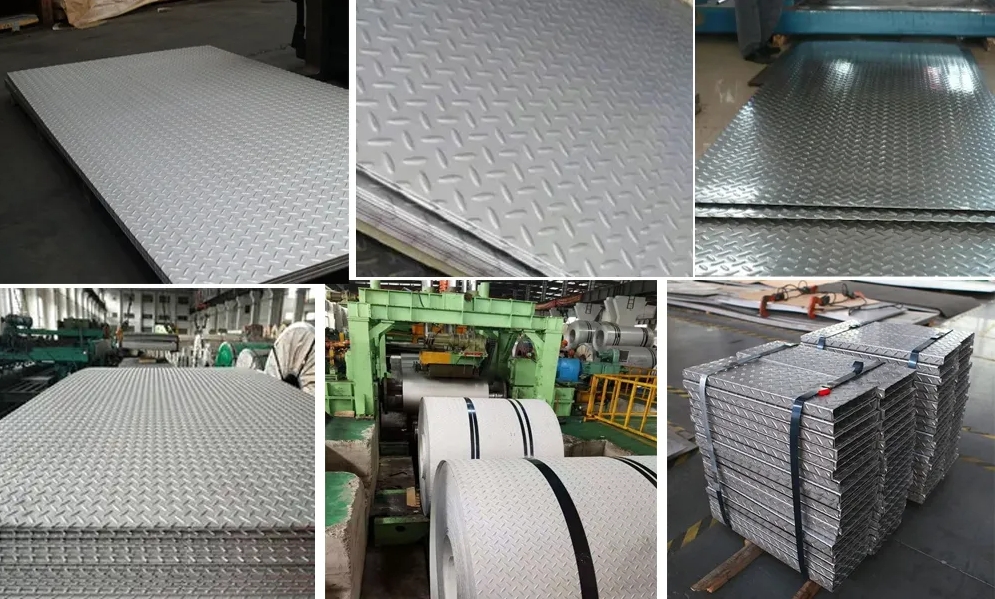

Wide inventory in diamond and 5-bar patterns
Precision cutting, shearing, and surface finishing
Third-party inspection (TPI) and EN 10204 3.1 certificates
Short lead times and global shipping support
Contact us today for a quote, datasheet, or free sample - and upgrade your project with reliable anti-slip stainless steel performance.
