ASTM A240 TP316LN Stainless Steel Plate

Key Features of TP316LN Stainless Steel Plate:

High Yield Strength
Compared to standard 316L, TP316LN stainless steel hot rolled plate offers increased yield strength due to the addition of nitrogen, allowing for thinner structural designs without compromising mechanical integrity.

Low Carbon for Weld Integrity
TP316LN stainless steel cold rolled plate contains a low carbon content (≤0.030%), which minimizes the risk of intergranular corrosion after welding. This makes TP316LN ideal for pressure vessels and welded structures exposed to corrosive environments.

Excellent Stress Corrosion Cracking Resistance
TP316LN pressure vessel stainless steel plates exhibit outstanding resistance to stress corrosion cracking in high-chloride and high-stress conditions, making them a preferred material in industries such as nuclear power, oil & gas, and offshore installations.

Suitable for High-Pressure and Hygienic Applications
TP316LN stainless steel plates are commonly used in applications requiring both high mechanical strength and hygienic performance, such as heat exchangers, reactors, pharmaceutical equipment, and food-grade systems.

Chemical Composition of ASTM A240 TP316LN Stainless Steel Plate (% by weight)

Element	Minimum (%)	Maximum (%)
Carbon (C)	—	0.030
Manganese (Mn)	—	2.00
Phosphorus (P)	—	0.045
Sulfur (S)	—	0.030
Silicon (Si)	—	1.00
Chromium (Cr)	16.0	18.0
Nickel (Ni)	10.0	14.0
Molybdenum (Mo)	2.0	3.0
Nitrogen (N)	0.10	0.16
Iron (Fe)	Balance	Balance

Mechanical Properties of ASTM A240 TP316LN Plate (Typical Values)

Property	Value (Metric)
Tensile Strength (min)	515 MPa (75 ksi)
Yield Strength 0.2% Offset (min)	205 MPa (30 ksi)
Elongation (in 50 mm) (min)	40%
Hardness (Brinell)	≤ 217 HB
Hardness (Rockwell B)	≤ 95 HRB
Modulus of Elasticity	~193 GPa
Density	8.0 g/cm³
Melting Point Range	1370–1400 °C



ASTM A240 TP316LN Stainless Steel Plate – Standard Specifications

Item	Specification
Grade	ASTM A240 TP316LN
Standard	ASTM A240 / ASME SA240
Product Form	Hot Rolled Plate / Cold Rolled Plate
Thickness Range	3.0 mm – 100 mm (Custom sizes available upon request)
Width Range	1000 mm – 2000 mm (Up to 2500 mm for special orders)
Length Range	2000 mm, 2440 mm, 6000 mm, or cut-to-length as required
Surface Finish	No.1 (HR), 2B, BA, No.4, HL, Mirror (Custom finishing available)
Edge Type	Mill Edge / Slit Edge / Sheared Edge
Tolerance	According to ASTM A480 (flatness, thickness, length & width tolerance)
Certification	EN 10204 3.1 / 3.2, PED, NACE MR0175, AD2000-W0 (if required)

✅ Strict Quality Control
All TP316LN plates are sourced from certified mills and undergo rigorous inspection for chemical composition, mechanical properties, surface finish, and dimensional accuracy.

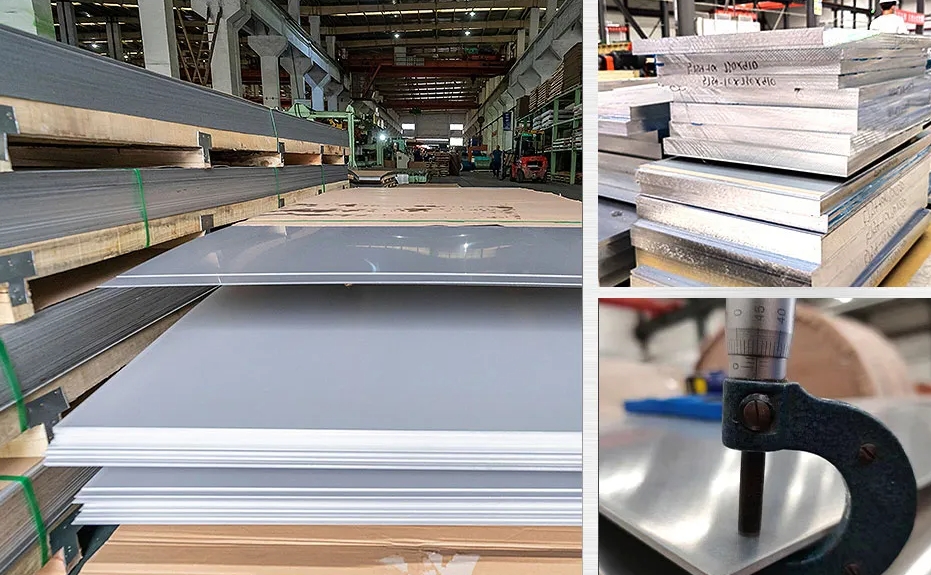

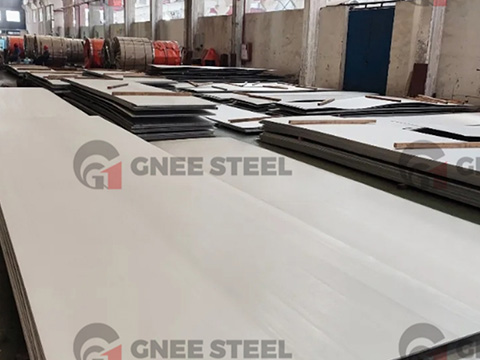

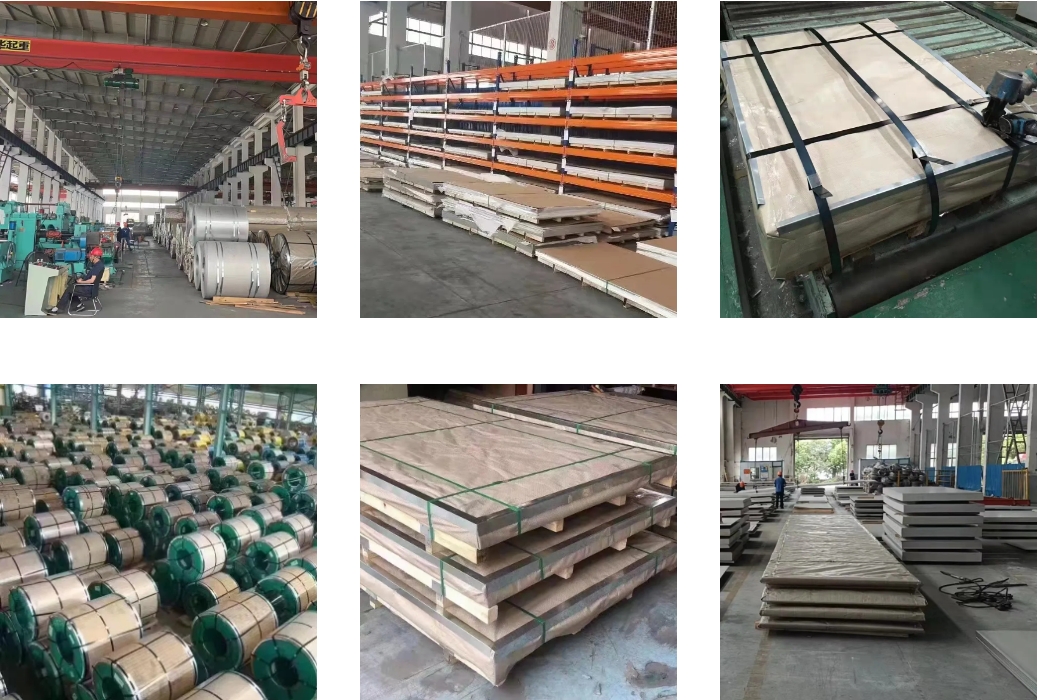

✅ Wide Inventory Range
Stock available in thicknesses from 3 mm to 100 mm, with widths up to 2000 mm and lengths up to 6000 mm—ready for immediate shipment.
✅ Global Certifications
We provide EN 10204 3.1/3.2 certificates and support compliance with NACE MR0175, PED, AD2000-W0, and pressure vessel codes upon request.

GNEE not only supplies raw material but also provides value-added processing services to save you time and cost:

CNC Plasma & Laser Cutting – Precise custom shape and size cutting with minimal heat distortion
Surface Polishing & Brushing – 2B, No.4, HL, BA, and mirror finish for decorative or hygienic applications
Shearing & Slitting – For custom width and length requirements
Drilling, Bending & Rolling – Plate forming for pressure vessels, tanks, or heat exchangers

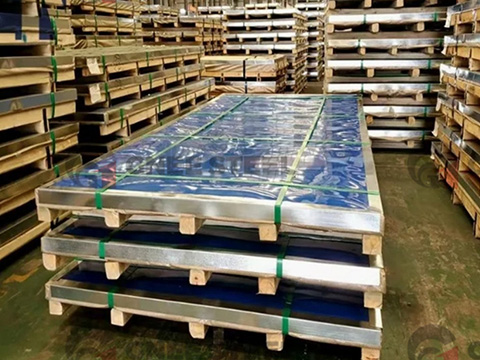

Custom Packaging & Export Logistics – Seaworthy wooden pallets and anti-rust

 What is ASTM A240 TP316LN stainless steel plate used for?
Answer:
TP316LN stainless steel plate is commonly used in industries requiring both high corrosion resistance and mechanical strength, such as chemical processing, marine environments, nuclear power, oil & gas, and pharmaceutical equipment.

What’s the difference between TP316LN and TP316L stainless steel?
Answer:
TP316LN contains added nitrogen, which improves its yield strength and stress corrosion cracking resistance, especially in chloride-rich environments. TP316L has lower strength but is widely used for general corrosion resistance.

What surface finishes are available for TP316LN plates?
Answer:
We offer a variety of finishes including No.1 (hot rolled, annealed & pickled), 2B (cold rolled, smooth), No.4 (brushed), HL (hairline), and mirror finish. Custom polishing is also available.
