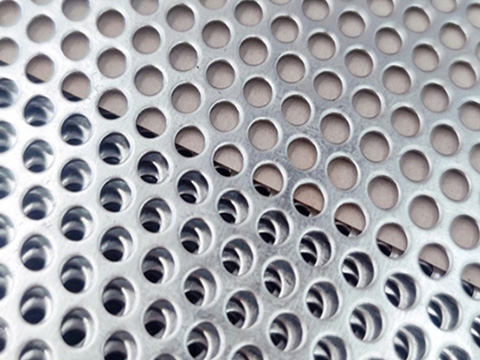

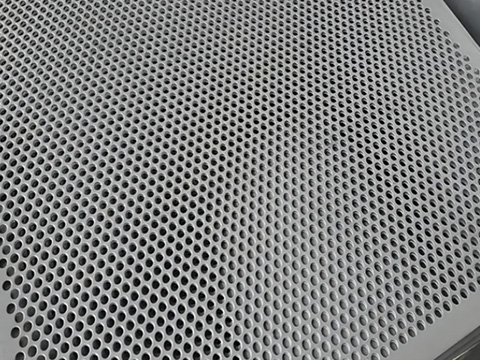

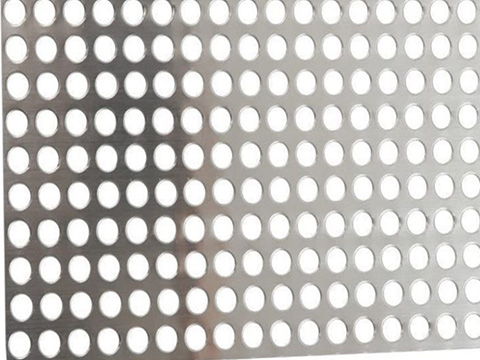

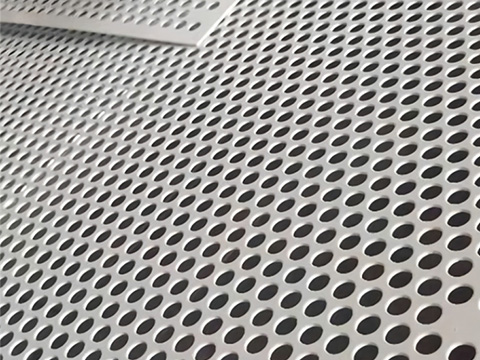

316 Stainless Steel Perforated Sheet

316 stainless steel perforated sheet is an austenitic stainless steel containing 2-3% molybdenum. Its chlorine corrosion resistance is much higher than that of 304 stainless steel, and the area around the perforated holes is not easily cracked or damaged by corrosion. The service life can be extended by 2-3 times, greatly reducing the cost of frequent replacement.

The tensile strength of 316 stainless steel sheet with holes is ≥515MPa. After perforation, the arrangement of the holes is optimized to reduce stress concentration and ensure structural stability. It can be directly used in scenes where both strength and transparency are taken into consideration, such as equipment protective covers and building curtain walls.

The size of stainless steel 316 perforated sheet is a crucial consideration, so we offer sheet sizes ranging from 1000mm to 6000mm in width, 2000mm to 6000mm in length, and 4mm to 100mm in thickness. If you require a sheet of a different size, please contact us and state your size requirements. We will deliver the sheet to you as quickly as possible.



Item	316 Stainless Steel Perforated sheet(Hot rolled, cold rolled)
Standard	JIS, AISI, ASTM, GB, DIN, EN
Material	316 Stainless Steel Perforated sheet

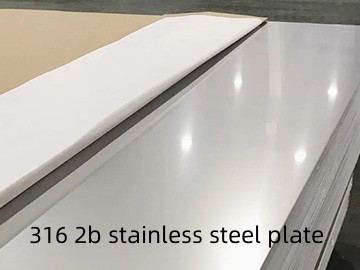

Surface	the surface and finish of 316 Stainless Steel Perforated sheet: 2B, BA, HL, Brush, NO.1, NO.4, 8K, SB, etc
Thickness	0.3-15mm
Width	1000mm~2000mm or customized
Length	1000mm~6000mm or customized

Stainless Steel 316 Perforated Sheet Chemical Composition

Element	SS 316
C	0.08 max
Mn	2.0 max
Si	1.0 max
P	0.045 max
S	0.030 max
Cr	16 – 18
Ni	11 – 14
Mo	2 – 3
Fe	67.845 min

Mechanical Properties of SS 316 Perforated Sheet

Element	SS 316
Density	8.0 g/cm3
Melting Point	1400 °C (2550 °F)
Tensile Strength	Psi – 75000 , MPa – 515
Yield Strength (0.2%Offset)	Psi – 30000 , MPa – 205
Elongation	35 %

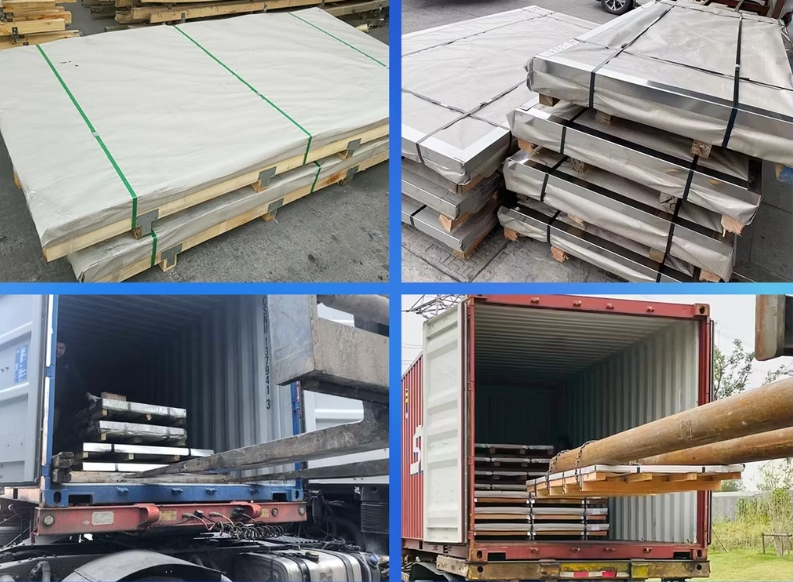

GNEE has 50,000 tons of inventory. Regular specifications of 316 perforated plates can be shipped within 3 days, and customized products can be delivered within 15-30 days. Each batch of products comes with a material certificate (Mill Test Certificate), including a spectral analysis report (PMI test) and mechanical performance test data.
In addition, we also provide 316 perforated stainless steel sheet 4x8, 3mm thick 316 stainless steel perforated sheet, 16 gauge perforated stainless steel 316 sheet.

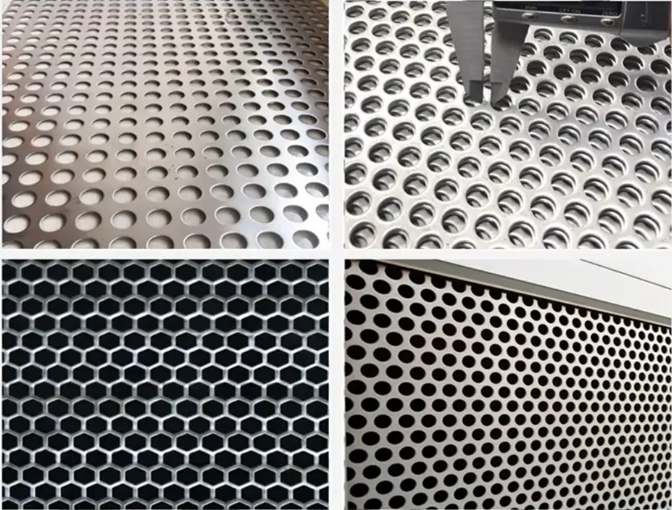

 GNEE offers custom punching, cut-to-size service, and surface treatments based on your specifications. Available hole sizes, pitch, sheet dimensions, and finishes can be tailored for industrial or decorative use.

1. Is 316 perforated stainless steel magnetic?
Generally, 316 stainless steel is non-magnetic in the annealed condition. However, slight magnetism may develop after cold working (e.g., punching or rolling).

2.. Can 316 perforated sheets be welded or fabricated?
Yes. 316 stainless steel offers excellent weldability and formability. It can be sheared, cut, bent, laser-cut, or welded using conventional stainless steel fabrication techniques.

3. What standards apply to 316 perforated stainless steel sheets?
ASTM A240 (plate and sheet standard)
ASTM A666 (mechanical properties for annealed conditions)
EN, JIS, and GB equivalents also apply depending on the region.
