ASTM A240 316 2B Stainless Steel Plate

316 stainless steel plates undergo bright annealing to form a dense passive film. Cold rolling minimizes surface defects. Combined with the molybdenum content, this enhances rust resistance by over 30% compared to No.1 surface in environments like seawater and mildly acidic media-ideal for coastal areas and swimming pool applications.

The 316 2B surface finish steel sheet features low surface roughness (Ra ≤ 0.8μm), a matte appearance without visible grain lines, and excellent resistance to dirt and bacterial growth, making it well-suited for hygienic applications such as food processing and medical environments.

In addition, 316 2B steel sheets offer high flatness (tolerance ±0.02mm), a yield strength approximately 20% higher than No.1 finish, and excellent resistance to scratching and cracking during stamping. Weld discoloration is minimal, and surface adhesion for secondary treatments is improved-making it ideal for various fabrication processes.



SA 240 Gr 316 Equivalent

Grade	WERKSTOFF	UNS	BS	JIS	AFNOR	GOST	EN
SS 316	1.4401 / 1.4436	S31600	316S31 / 316S33	SUS 316	Z7CND17‐11‐02	–	X5CrNiMo17-12-2 / X3CrNiMo17-13-3



316 Stainless Steel Sheet Mechanical Properties

ASTM A240	Melting Range	Psi / Mpa - Tensile Strength	Psi / Mpa - Yield Strength (0.2%Offset)	Density	% Elongation
ASTM A240 Gr 316	1400 °C (2550 °F)	MPa – 515 Psi – 75000	MPa – 205 Psi – 30000	8.0 g/cm3	35 %

SS 316 Plate Chemical Composition

ASME SA 240	C	Si	P	N	Mn	S	Mo	Cr	Ni
SA 240 316	0.08 max	1.0 max	0.045 max	67.845 min	2 max	0.030 max	2.00 – 3.00	16.00 – 18.00	11.00 – 14.0

Stainless Steel 316 Plate Thickness

Manufacturer of Aisi 316 Stainless Steel Plate in India, don't forget to compare our price with other Ss 316 Sheet manufacturers and Supplier

Thickness	Thickness	Available Sizes	Surface Area per Unit weight		Approx Weight per Sheet
inches	mm		lbs/ft²	kg/m²	lbs	kg
0.015	0.381	36 x 96	0.630	3.07566	15.12	6.84936
0.015	0.381	36 x 120	0.630	3.07566	18.90	8.5617
0.0178	0.45212	36 x 96	0.756	3.690792	18.15	8.22195
0.0178	0.45212	36 x 120	0.756	3.690792	22.68	10.27404
0.0178	0.45212	48 x 96	0.756	3.690792	24.19	10.95807
0.0178	0.45212	48 x 120	0.756	3.690792	30.24	13.69872
0.0235	0.5969	30 x 96	1.008	4.921056	20.16	9.13248
0.0235	0.5969	30 x 120	1.008	4.921056	25.20	11.4156
0.0235	0.5969	36 x 96	1.008	4.921056	24.19	10.95807
0.0235	0.5969	36 x 120	1.008	4.921056	30.24	13.69872
0.0235	0.5969	36 x 144	1.008	4.921056	36.29	16.43937
0.0235	0.5969	48 x 96	1.008	4.921056	32.26	14.61378
0.0235	0.5969	48 x 120	1.008	4.921056	40.32	18.26496
0.0235	0.5969	48 x 144	1.008	4.921056	48.39	21.92067
0.0291	0.73914	30 x 96	1.260	6.15132	25.20	11.4156
0.0291	0.73914	30 x 120	1.260	6.15132	31.50	14.2695
0.0291	0.73914	36 x 96	1.260	6.15132	30.24	13.69872
0.0291	0.73914	36 x 120	1.260	6.15132	37.80	17.1234
0.0291	0.73914	36 x 144	1.260	6.15132	45.37	20.55261
0.0291	0.73914	48 x 96	1.260	6.15132	40.32	18.26496
0.0291	0.73914	48 x 120	1.260	6.15132	50.41	22.83573
0.0291	0.73914	48 x 144	1.260	6.15132	60.49	27.40197
0.0355	0.9017	30 x 96	1.512	7.381584	30.24	13.69872
0.0355	0.9017	30 x 120	1.512	7.381584	37.80	17.1234
0.0355	0.9017	36 x 96	1.512	7.381584	36.29	16.43937

We also offer a variety of surface treatments including: 316 Stainless Steel Bright Annealed Plate, 316 stainless steel mirror plate, 316 polished stainless steel plate, 316 brushed stainless steel plate, 316 8K mirror finish steel sheet.

1. Meets ASTM A240 / ASME SA240 standards and has EN 10204 3.1 / 3.2 factory test report certification.
2. Thickness range: 0.3mm - 100mm, width up to 2000mm, cut-to-length service, optional services: lamination, leveling, laser cutting, edge treatment.

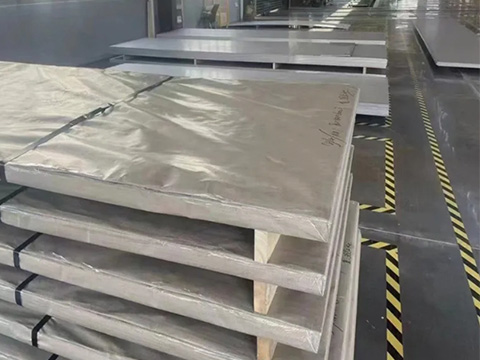

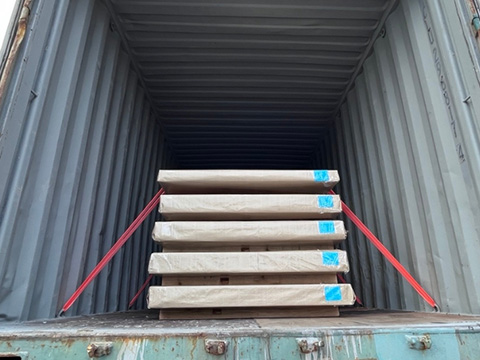

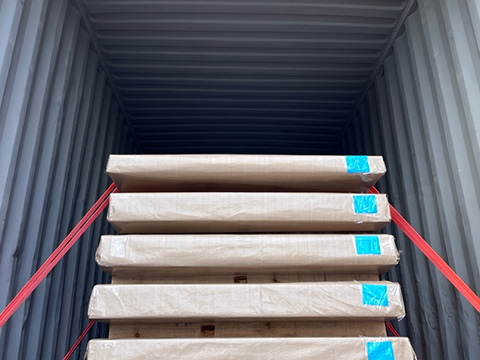

3. Waterproof paper + PE film interlayer to prevent scratches and moisture, delivery within 3-7 working days, fast delivery to Europe, Southeast Asia, Middle East, South America and North America, etc.

The materials we supply are fully verifiable, from raw material test certificates to final dimensional declarations. (Reports will be shown on request) Factory delivery while minimizing manufacturing time.

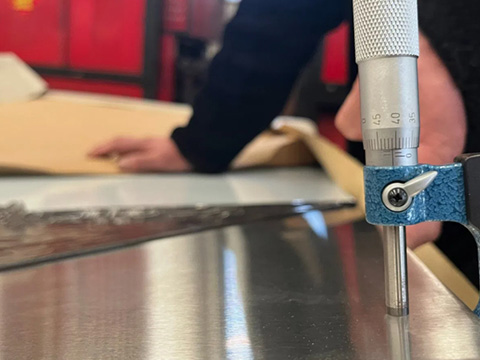

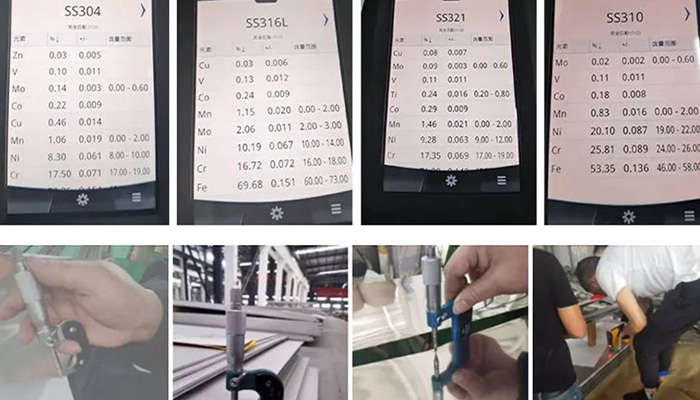

Tests we perform (destructive and non-destructive): Mass testing, Chemical inspection - Spectroscopic analysis, Hardness testing, Pitting protection testing, Impact analysis, Eddy current testing, Hydrostatic analysis.

Q. What is the thickness range of ASTM A240 316 2B plates?
A.Standard thicknesses range from 0.5 mm to 50 mm or more, depending on the manufacturer. Custom thicknesses can also be supplied upon request.

Q. What are the standard plate sizes available?
A.The most common size is 4’ x 8’ (1219 mm x 2438 mm), but other sizes such as 5’ x 10’ or custom-cut dimensions are also available to meet specific project needs.

Q. Is 316 2B stainless steel plate suitable for welding?
A.Yes. 316 stainless steel has excellent weldability. It can be welded using all standard fusion methods, with or without filler metals. Post-weld annealing is recommended in some corrosive environments.

Q. How does 316 stainless steel compare to 304?
A.While both are austenitic stainless steels, 316 contains molybdenum, which gives it superior resistance to chloride-induced corrosion, making it a better choice for marine or harsh chemical conditions. 316 also has slightly higher strength and heat resistance.
