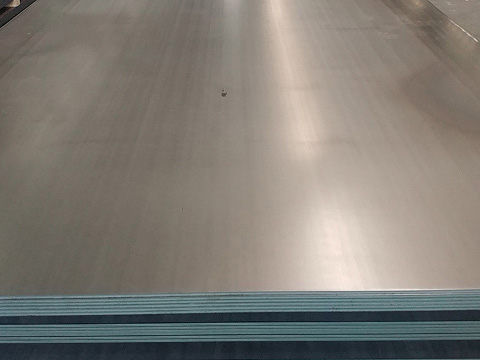

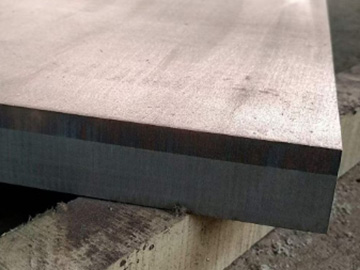

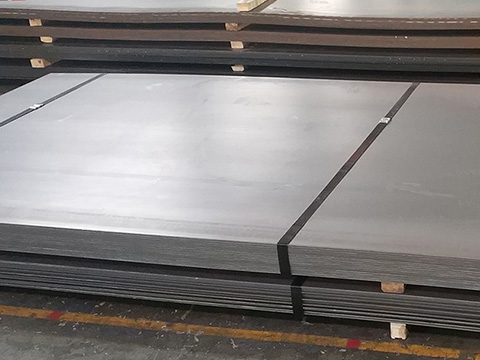

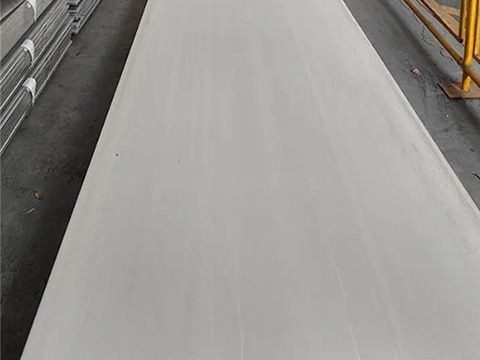

ASTM A240 316L Annealed stainless steel Plate

ASTM A240 316L hot-rolled steel plates supplied by GNEE meet American standards. Low carbon (<0.03%) improves weldability and reduces the risk of intergranular corrosion after welding. After processing at above 1100°C, they have high toughness, smooth grains and are economical to produce in large sizes. They contain 2-3% molybdenum, and are better than 304 in resistance to chloride pitting/crevice corrosion. No post-weld annealing is required (reducing costs and saving time). They are suitable for ASME medium-high temperature and pressure systems, and have obtained dual certifications of ASTM A240 and ASME SA240, making them the preferred choice for international engineering projects.


316L stainless steel plates Application:
Chemical processing equipment (tanks, piping, reactors)
Desalination and marine components (hulls, brine tanks, offshore structures)
Oil & gas industry (heat exchangers, pressure vessels, pipelines)
Power generation (boiler components, flue gas scrubbers)
Architectural and structural uses (facades, load-bearing supports in corrosive environments)

Item	Specification
Standard	ASTM A240 / ASME SA240
Grade	316L (UNS S31603 / EN 1.4404)

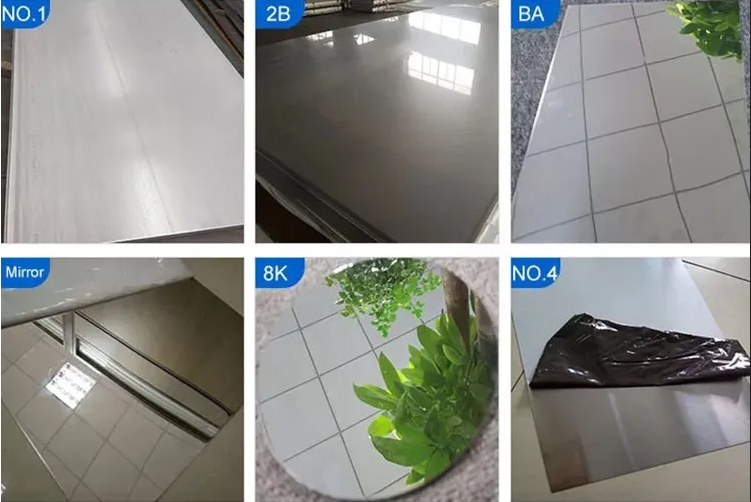

Finish	No.1 (Hot Rolled, Annealed & Pickled)
Thickness Range	3.0 mm – 100 mm
Width Range	1000 mm – 2000 mm
Length Range	2000 mm – 6000 mm (custom lengths available)
Tolerances	As per ASTM A480 / EN 10029
Surface Treatment	Hot rolled, annealed, pickled
Certification	ASTM A240, ASME SA240, EN 10204 3.1 / 3.2



316l Stainless Steel Properties

Physical Property	Value
Density	8.0 g/cm³
Melting Point	1400 °C
Thermal Expansion	15.9 x10^-6 /K
Modulus of Elasticity	193 GPa
Thermal Conductivity	16.3 W/m.K
Electrical Resistivity	0.74 x10^-6 Ω .m









Spec: EN 10088-2:2005

Mechanical Property	Value
Proof Stress	220 Min MPa
Tensile Strength	520 to 670 MPa
Elongation A50 mm	45 Min %



SS 316l Plate Mechanical Properties

Tensile Strength	Yield Strength 0.2% Proof	Elongation (% in 50 mm)	Hardness
			Rockwell B	Brinell
485mpa	170mpa	40	95HRB	217HB

316l Stainless Steel Composition

C Max	0.03
Manganese	2 Max
Phosphorous	0.045 Max
Sulfur	0.03 Max
Si	0.75 Max
Chromium	16-18
Nickel Ni	10-14
Nitrogen	0.1 Max
Molybdenum	2-3



SS 316L pickled plate price per kg

The price of SS316L plate per kg varies depending on thickness, surface finish, and quantity, but GNEE offers competitive factory-direct pricing with fast delivery.

1.We have non-destructive testing (NDT) such as online eddy current testing and water pressure or air tightness testing.
2. Raw materials are from TISCO, Baosteel, Zhangpu, etc.
3. Ensure full material traceability during production.
4.Accept any third party inspection from such SGS, TUV, DNV, InterTek, Lloyd’s, BV, ABS etc.
5.Full supplying of stainless steel piping – stainless steel pipes, pipe fittings, flanges, sheet etc.

Q: What thicknesses and sizes are available?
A: Common thicknesses range from 3mm to over 100mm, with standard sizes including 4ft x 8ft (1219mm x 2438mm) and 5ft x 10ft (1500mm x 3000mm). Custom sizes can be cut upon request.

Q: How does 316L perform compared to 304L?
A: 316L has better resistance to chlorides, acids, and pitting than 304L, making it ideal for harsh chemical or marine environments.

Q: Does 316L plate come with an MTC (Material Test Certificate)?
A: Yes, reputable GNEE stainless steel will provide an MTC to EN 10204 3.1 or 3.2, detailing the chemical composition, mechanical properties, and heat treatment status.
