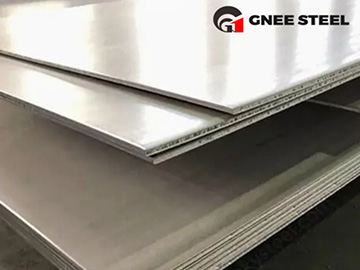

ASTM A240 UNS N08904 stainless steel sheet

AISI 904L stainless steel plate (UNS N08904 / EN 1.4539 / GB 015Cr21Ni26Mo5Cu2) is a low-carbon, high-alloy austenitic stainless steel designed for harsh corrosive environments, with excellent corrosion resistance and mechanical properties. It has excellent resistance to reducing acids such as sulfuric acid, phosphoric acid, and acetic acid (applicable to a wide range of concentrations, such as 0-98% sulfuric acid).

904L corrosion-resistant plate The short-term use temperature of stainless steel plate can reach 400°C, but the strength decreases under long-term high temperature, and continuous high temperature conditions should be avoided.



Specification For 904l Cold Rolled Stainless Steel Sheets

Thickness	- Plates: 0.1-200mm - Coils: 0.3-3.0mm
Width	- Plates: 1000-2500mm - Coils: 1000-1800mm
Chemical Composition	- Carbon (C): ≤ 0.02% - Chromium (Cr): 19-23% - Nickel (Ni): 23-28% - Molybdenum (Mo): 4-5% - Copper (Cu): 1-2% - Manganese (Mn): ≤ 2.0% - Silicon (Si): ≤ 1.0%
Mechanical Properties	- Tensile strength: ≥ 490 MPa - Yield strength: ≥ 215 MPa - Elongation: ≥ 35% - Hardness: ≤ 90 HRB
Standards	- ASTM A240/A240M (Standard Specification for Chromium and Chromium - Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and General Applications) - EN 10088-2 (Stainless Steels. Technical Delivery Conditions for Sheet/Plate and Strip for General Purposes) - GB/T 20878 (Stainless Steel and Heat - Resisting Steel Plate, Sheet and Strip)

Why choose GNEE

The 904L stainless steel plate supplied by GNEE can be used for a long time below 1000℃, and its anti-oxidation performance is better than that of ordinary austenitic stainless steel. It is equipped with a high-temperature heat treatment furnace (±5℃ temperature control accuracy), optimizes the stability of material structure, and adopts multiple cold rolling (total deformation ≥60%) to improve the flatness and surface finish of the plate (Ra≤0.8μm).

1. Q: Can we visit your factory?
A: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
2. Q: Can you provide OEM/ODM service?
A: Yes. Please feel free to contact us for more detail discussion.
3. Q: How is your Payment Term?
A: We prefer TT
4. Q: Can you provide sample?
A: Yes, for regular size of samples, it's for free but buyer need to pay freight cost.
