316 Stainless Steel Checkered Plate

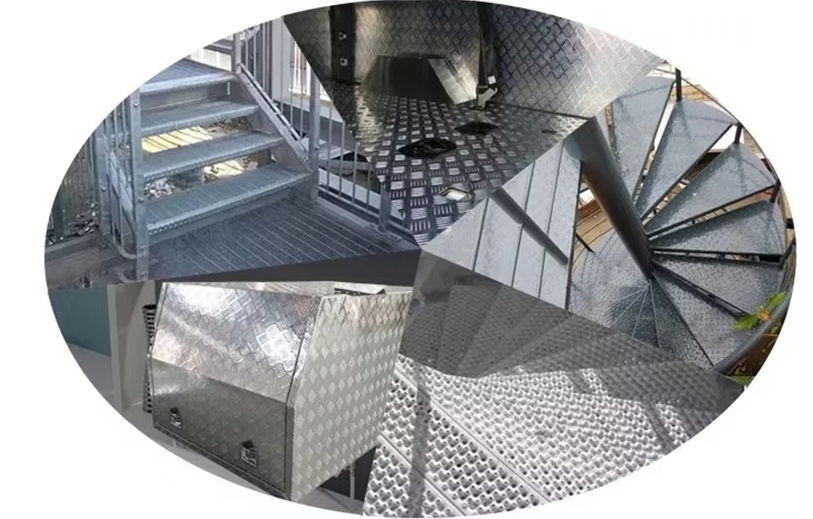

The surface pattern design of 316 stainless steel pattern plate greatly improves friction and can effectively prevent slipping. It is suitable for safety demand scenes such as stair treads and industrial platforms. It can withstand loads and impacts, taking into account structural support and durability. It is suitable for scenes such as building exterior walls, and is easy to clean, low maintenance cost and long service life.

Product	Stainless Steel Chequered Plates/Sheets
Standard	JIS, ASTM, AISI
Material	304L, 304, 301, 202, 201, 309S, 310S, 321, 316L, 420, 410, 430
Surface	NO.1,2B, 8K, NO.4, Chequered
Thickness	0.1~30mm
Width	1219mm,1000mm,1800mm,1500mm, 2500mm, 2000mm, 3500mm, 3000mm etc
Length	2440mm, 6000mm, 2000mm, 5800mm, 3000mm, Custom



Size chart of Stainless Checkered Plate

Thickness (mm)	9.0	3.2	12.0	6.0	2.3	4.5
Max width (mm)	1524	1524	1524	1524	1219	1524
Maximum length (mm)	6096	6096	6096	6096	6096	6096



316 Stainless Steel Chequered Plate Chemical Compostion and Properties

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
316	Min	-	-	-	0	-	16.0	2.00	10.0	-
	Max	0.08	2.0	0.75	0.045	0.03	18.0	3.00	14.0	0.10

316 Stainless Steel Chequered Plate Mechanical and Physical Properties

Grade	Tensile Str (MPa) min	Yield Str 0.2% Proof (MPa) min	Elong (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
316	515	205	40	95	217

Physical properties of 316 grade stainless steel in the annealed condition

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Co-eff of Thermal Expansion (µm/m/°C)			Thermal Conductivity (W/m.K)		Specific Heat 0-100°C (J/kg.K)	Elec Resistivity (nΩ.m)
			0-100°C	0-315°C	0-538°C	At 100°C	At 500°C
316	8000	193	15.9	16.2	17.5	16.3	21.5	500	740

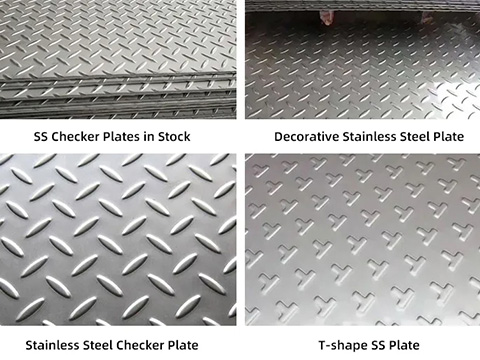

GNEE supports full-size customization with thickness of 0.3-10mm and width of 100-1500mm. The pattern style can be adjusted as needed (including customer-specific pattern mold opening), meeting the size requirements of multiple scenarios such as aerospace precision parts, food-grade production lines, and architectural decoration.

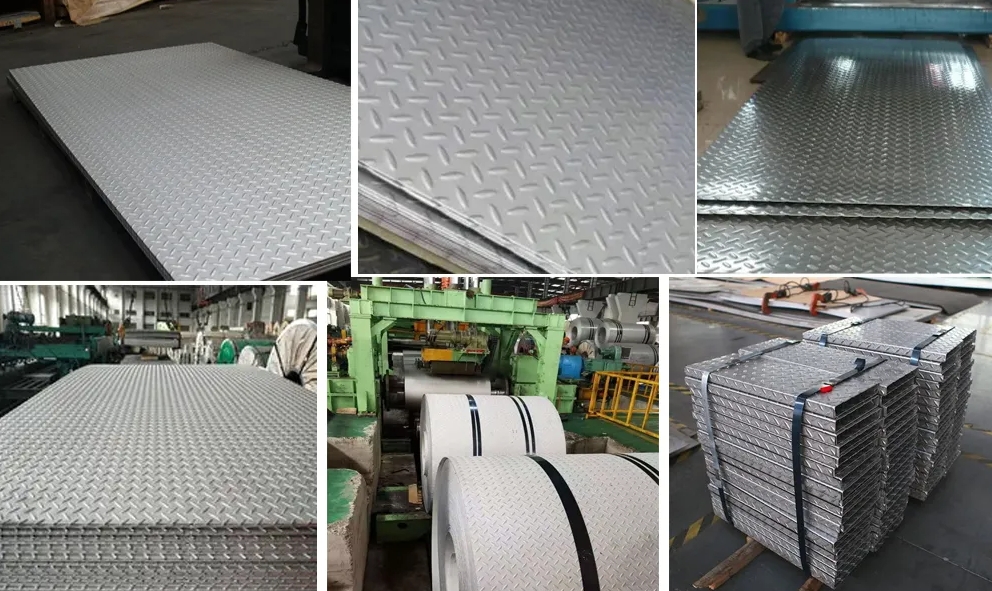

Each batch of plates is accompanied by a material test report (composition, mechanical properties, and corrosion resistance all meet ASTM A240 standards), and is tested for salt spray (5000 hours without rust) and anti-slip coefficient before leaving the factory; the inventory is sufficient, and conventional specifications are shipped within 48 hours, and special customization is delivered within 7 days.

Q1: Is 316 stainless steel checkered plate suitable for outdoor use?
A: Yes, it offers outstanding resistance to rust and corrosion, even in rain, humidity, and salty air, making it ideal for outdoor environments.

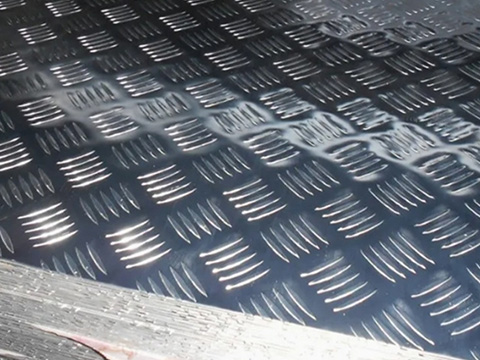

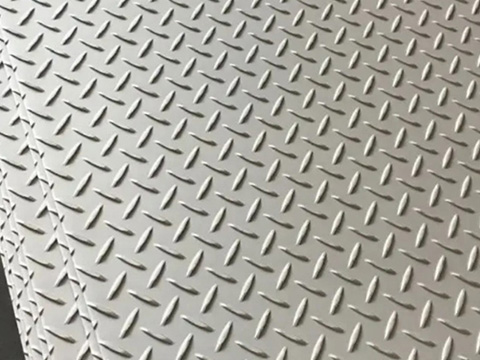

Q2: What’s the difference between diamond plate and 5-bar pattern?
A: Both are anti-slip textures. Diamond plate has a single raised diamond shape, while 5-bar has five parallel bars in a criss-cross pattern—both serve similar functional and aesthetic purposes.

Q3: How is 316 stainless steel checkered plate processed?
A: It is typically hot rolled and patterned via embossing or rolling to create the raised texture, then finished for surface protection and appearance.

Q4: Can I weld or cut 316 stainless steel checkered plate?
A: Yes. It can be easily welded, cut, or formed using standard fabrication techniques, though tools should be stainless-compatible to avoid contamination.
