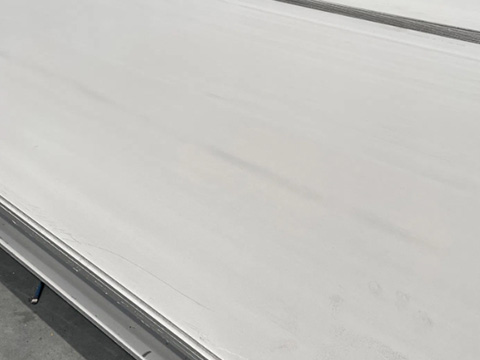

17-7PH AMS 5529 Stainless Steel Sheet

17-7PH stainless steel plate is a precipitation hardening stainless steel. After cold working and heat treatment, its tensile strength and yield strength are much higher than 304 and 316 steels, and even higher than 17-4PH. Although its corrosion resistance is slightly lower than that of austenitic 304 stainless steel, 17-7PH stainless steel plate still performs well in most industrial and atmospheric environments, and its high hardness and low deformation help to extend its service life. After TH 1050 or CH 900 heat treatment, it can obtain high strength and maintain excellent dimensional stability, which is suitable for parts with high precision requirements.
17-7PH stainless steel cold rolled plate can be processed by cold rolling, shearing, stamping, etc., and heat treatment after processing can obtain the final required strength. Suitable for manufacturing high-strength parts with complex shapes.

17-7PH Stainless Steel Sheet – Specification Sheet (AMS 5529)

Item	Detail
Specification	SAE AMS 5529J (latest revision)
Alloy	17-7PH (17Cr – 7Ni – 1.1Al)
UNS Designation	S17700
Cross-Reference	MIL-S-25043, ASTM A693, EN 1.4568, JIS SUS631
Product Form	Sheet & Strip, Cold Rolled
Conditions	C (Cold Rolled) / CH 900 (Cold Rolled + Aged 900 °F)
Thickness Range	0.0015 – 0.050 in (0.038 – 1.27 mm)
Structure	Semi-austenitic (ferrite + austenite) → martensitic after cold working
Hardening Mechanism	Precipitation hardening (Al-based γ″ phase)
Max Service Temp	1,000 °F (538 °C) — mechanical properties stable
Corrosion Resistance	Approaches Type 304 in most environments (CH 900)

 Chemical Composition (wt.%)

Element	Min	Max
C	—	0.09
Si	—	1.00
Mn	—	1.00
P	—	0.040
S	—	0.030
Cr	16.00	18.00
Ni	6.50	7.75
Al	0.75	1.50
Cu	—	0.30
Fe	Balance	—



Mechanical Properties

Condition C (Cold Rolled, Solution Heat Treated)

Property	Value (Imperial)	Value (Metric)
Tensile Strength, Rm (min)	200,000 psi	1,380 MPa
Yield Strength, Rp0.2 (min)	175,000 psi	1,205 MPa
Elongation in 2 in (min)	1%	1%
Hardness, HRC (min)	41	41

Condition CH 900 (Cold Rolled + Aged 900 °F / 482 °C, 4 h)

Property	Value (Imperial)	Value (Metric)
Tensile Strength, Rm (min)	240,000 psi	1,655 MPa
Yield Strength, Rp0.2 (min)	230,000 psi	1,586 MPa
Elongation in 2 in (min)	1%	1%
Hardness, HRC (min)	46	46

Condition A (Annealed, for reference — AMS 5528)

Property	Value (Imperial)	Value (Metric)
Tensile Strength, Rm (max)	105,000 psi	725 MPa
Yield Strength, Rp0.2 (min)	65,000 psi	448 MPa
Elongation in 2 in (min)	20%	20%
Hardness, HRB (max)	92	92

AMS 5529 is a US material specification for cold rolled and heat treated 17-7PH sheet for aerospace and military parts. Manufacturers such as GNEE can provide certified material to this standard with an MTC (Material Test Report) and traceable batch number.

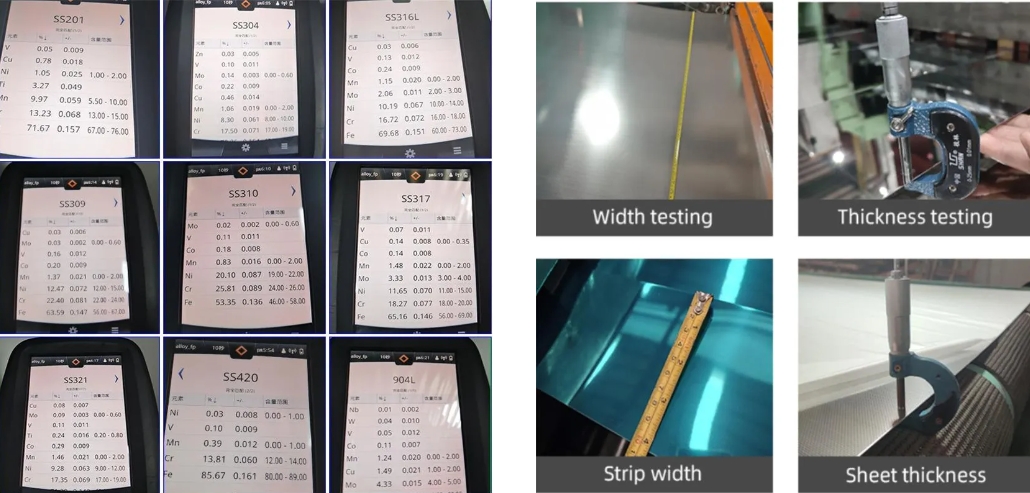

• Mechanical Testing Such as Tensile of Area
• Hardness Test
• Chemical Analysis – Spectro Analysis
• Positive Material Identification – PMI Testing
• Flattening Test
• Micro and MacroTest
• Pitting Resistance Test
• Flaring Test
• Intergranular Corrosion (IGC) Test
