ASTM A269 TP304 Stainless seamless Steel Tubes

ASTM A269 covers seamless and welded austenitic stainless steel pipes, focusing on general corrosive environments without high pressure and high temperature (such as chemical equipment and water treatment systems).
The carbon content of tp304 stainless steel seamless pipe is ≤0.08%, which reduces the risk of intergranular corrosion. It is suitable for conventional corrosive media in fertilizer, pharmaceutical, petrochemical and other industries. The long-term operating temperature is ≤300℃, covering scenes such as reactor jackets, cooling circulation systems, and liquid delivery pipelines.
The production cost of ASTM A269 tp304 stainless steel cold-rolled pipe is 10% lower than that of A312 TP304 stainless steel seamless pipe, which is suitable for small and medium-sized pressure vessels.

Product Case

A petrochemical enterprise uses A269 TP304 tubes (φ600×8mm) as seawater cooling pipes for crude oil pretreatment equipment. It has been running for 5 years without leakage, and the total cost is 28% lower than that of A312.
If you need to further discuss the material selection plan under specific working conditions or obtain a quotation, please feel free to contact us!

Data table

ASTM A269 304 Tubing Equivalent

Grade	UNS No	Old British		Euronorm		Swedish SS	Japanese JIS
		BS	En	No	Name
TP304	S30400	304S31	58E	1.4301	X5CrNi18-10	2332	SUS 304

SA269 Type 304 Seamless Tubes Chemical Composition

Grades	Carbon	Chromium	Phosphorus	Sulfur	Manganese	Silicon	Nickel
TP304	0.08	18.0-20.0	0.045	0.03	2	1	8.0-11.0

mechanical Properties of ASTM A269 TP 304 Stainless Steel Seamless Tubes

Density	8.0 g/cm3
Melting Point	1400 °C (2550 °F)
Tensile Strength	Psi – 75000 , MPa – 515
Yield Strength (0.2%Offset)	Psi – 30000 , MPa – 205
Elongation	35 %

company advantage

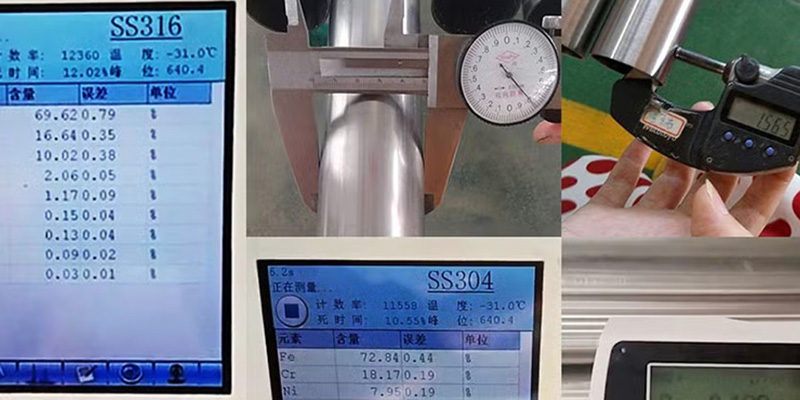

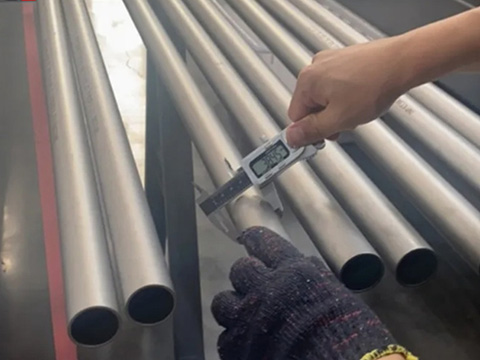

Gnee offers ASTM A269 TP304 stainless seamless steel tubes with strict dimensional tolerance, smooth inner surfaces (ID Ra ≤ 0.8μm), and 100% eddy current & hydrostatic testing to ensure leak-free and high-purity performance. With in-house cold drawing & bright annealing lines, Gnee delivers consistent quality suitable for food, pharmaceutical, and instrumentation applications. Backed by large inventory, fast global delivery, and custom cutting & polishing services, Gnee is your trusted one-stop stainless steel tube supplier.

GNEE Stainless Steel Factory

additional services

1. Polishing of stainless steel tubes
2. Beveling of stainless steel tubes
3. Honing and turning of stainless steel tubes
4. Heat treatment and annealing
5. Positive Material Identification (PMI)
