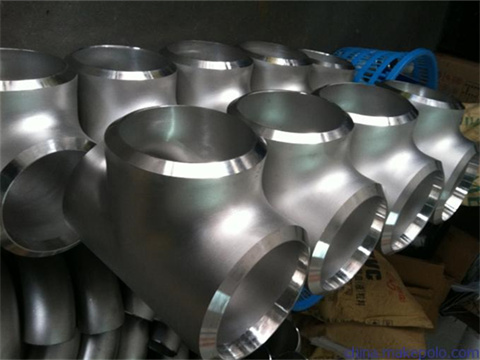

Stainless Steel Cross

Steel pipe cross fittings are designed and manufactured according to international standard of ASME B16.9. It may have one inlet and three outlets or three inlets and one outlet. The common used material are carbon steel and stainless steel.

Buttwelding Fittings are used in a piping system to change direction or function of media, to branch off, reduce pipe size or attach auxiliary equipment. They are availbale in multiple types as elbow, tee, cap, reducer, stub end and oelt, that produced in cold and hot forming based on ASTM A403 and ASTM A234 specification.

Specification of Cross Pipe Fittings

Shape Type	Equal Cross and Reducing Cross
Size Range	1/2” - 80” / DN15 - 2000
Thickness Schedule	SCH 10 - SCH 160, XXS
China Standard	GB/T12459, GB/T13401, HG/T21635/21631, SH3408/3409
America Standard	ANSI / ASME B16.9 / MSS SP 43
Japan Standard	JIS B2311/2312/2313
Germany Standard	DIN2605/2615/2616/2617
Europe Standard	EN10253
Carbon Steel	Q235, 20#, 35#, 45#, 20G,ASTM A234 WPB/WPC
Low Temp Carbon Steel	Q345B, 16Mn, ASTM A420 WPL6
Pipeline Steel	ASTM A860 WPHY 42 / 46 / 56 / 60 / 65
Alloy Steel	ASTM A234 WP11 / WP12 / WP 5 / WP9 / WP91 / WP92,15CrMoG, 12Cr1MoVG, 12Cr5Mo, 1Cr5Mo, Cr9Mo, 10CrMo910, 12CrMo4-515CrMoG, 12Cr1MoVG, 12Cr5Mo, 1Cr5Mo, Cr9Mo, 10CrMo910, 12CrMo4-5
Stainless Steel	ASTM A403 WP304/304L/304H, 316/316L, 310S, 317,347,904L
Duplex Stainless Steel	ASTM A815 S32205, S31803, 32750, 32760

Steel Pipe Cross Fittings Drawing

Nominal Size		Outside Diameter at Bevel	Center to End
DN	NPS	OD1×OD2	C	M
15	1/2	21.3	25	25
20	3/4	26.7	29	29
25	1	33.4	38	38
32	11/4	42.2	48	48
40	11/2	48.3	57	57
50	2	60.3	64	64
65	21/2	73.0	76	76
80	3	88.9	86	86
90	31/2	101.6	95	95
100	4	114.3	105	105
125	5	141.3	124	124
150	6	168.3	143	143
200	8	219.1	178	178
250	10	273.0	216	216
300	12	323.8	254	254
350	14	355.6	279	279
400	16	406.4	305	305
450	18	547.0	343	343
500	20	508.0	381	381
550	22	559.0	419	419
600	24	610.0	432	432
650	26	660.0	495	495
700	28	711.0	521	521
750	30	762.0	559	559
800	32	813.0	597	597
850	34	864.0	635	635
900	36	914.0	673	673
950	38	965.0	711	711
1000	40	1016.0	749	749
1050	42	1067.0	762	711
1100	44	1118.0	813	762
1150	46	1168.0	851	800
1200	48	1219.0	889	838
1300	52	1321.0	965	914
1400	56	1422.0	1041	965
1500	60	1524.0	1118	1016
1600	64	1626.0	1194	1092
1700	68	1727.0	1270	1168
1800	72	1829.0	1320	1245
1900	76	1930.0	1422	1320
2000	80	2032.0	1499	1397

Notes

1) Besides the above mentioned standards, the standards of GB/T 10752 SH 3408 SH 3409 HG/T 21635 HG/T 21631 SY/T 0510 DL/T 695 EN 10253 etc.are also applied.

2) For the straight crosses with DN≥650(NPS 26)and the reducing crosses with DN≥350(NPS 14 , the outlet sizes are recommended to use (that mean the other sizes may be applied).

3) For the crosses with the sizes larger than that listed in the above table,they will be supplied subject to the sized agreed by purchaser and manufacturer or according to manufacturer's size.
