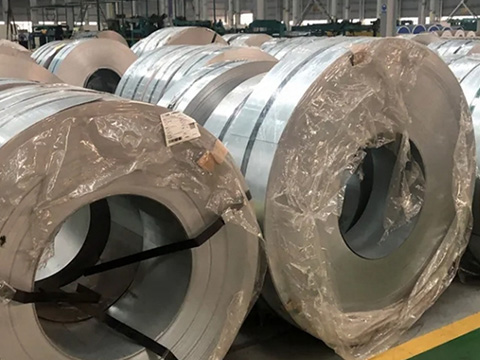

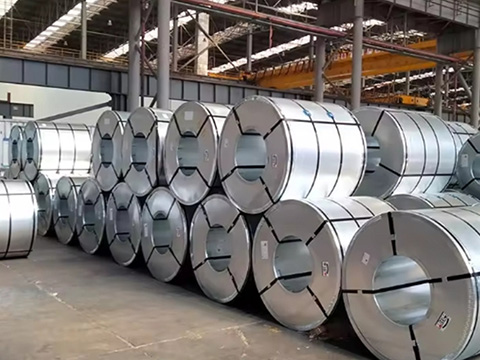

309S Stainless Steel Cold Rolled Coil



After removing the hot-rolled oxide scale, the 2B surface roughness of 309S stainless steel cold-rolled coil is Ra≤0.8μm (BA surface Ra≤0.2μm), and it can be used for high-end kitchenware (such as oven liner) and the inner wall of heat treatment equipment without additional polishing, saving 30% of surface treatment costs.

The surface defect rate of 309S stainless steel coil after cold rolling is <0.3% (industry average 1%), and the fluidity during welding is good, reducing defects such as pores and slag inclusions, and the welding qualification rate is ≥98%. The hardness is increased from HRB 95 to 110, and the tensile strength is ≥520MPa, which not only maintains the bending toughness (elongation ≥40%), but also improves the wear resistance.

309 Stainless Steel Coil Specifications:

Grades	Stainless Steel J1, J2, J4, 201, 202, 301, 304, 304H, 304L, 309, 309S, 310, 310S,
Thickness	0.02mm – 5.0mm
Width	3.2mm – 1500mm
Length	2000mm, 2440mm, 3000mm, 5800mm, 6000mm, AS PER CUSTOMER'S REQUIREMENT
Type of Material	Stainless steel mild steel, deep drawn steel, extra deep drawn steel, quarter hard steel, semi hard steel, full hard steel.
Form	Coil / Strip
Test Certificate	Yes.
Finish	NO.1, 2B, 2D, 2H, 2R, No.4, HAIRLINE, SCOTCH BRITE, SATIN FINISH, NO.8, BA.

Chemical Composition of Stainless Steel 309 Coil

Grade	Fe	Cr	Ni	Mn	Si	C	P	S
SS 309	60%	23%	14%	2%	1%	0.20%	0.045%	0.030%



ASTM A240 SS 309S Coil Mechanical Properties

Yield Strength 0.2% Offset0		Ultimate Tensile Strength		Elongation in 2 in.	Hardness
psi (min.)	(MPa)	psi (min.)	(MPa)	% (min.)	(max.)
45,000	310	85,000	586	50	202 (HBN)

Stainless Steel 309S Coil Physical Properties

Grade	Density (lb / cu. in.)	Specific Gravity	Specific Heat (Btu/lb/Deg F – [32-212 Deg F])	Electrical Resistivity (microhm-cm (at 68 Deg F))	Melting Point (Deg F)	Modulus of Elasticity Tension
309S	0.287	7.9	0.12	468	2650	29

Why Choose GNEE

Customized processing:
Slitting accuracy ±0.1mm, minimum width 50mm, suitable for precision instrument parts;
Surface deep processing: sandblasting, brushing, anti-fingerprint treatment to meet high-end decoration needs.
Free "309S Cold Rolled Coil Processing Manual", including bending radius calculation (R=2t), welding parameter table (ER309L welding wire recommended, current 100-130A), if you need it, please contact us immediately!

How is 309S cold rolled coil different from 304?
309S has higher chromium and nickel content, giving it superior high-temperature strength and oxidation resistance compared to 304.
Is 309S magnetic?
In the annealed condition, 309S is generally non-magnetic but may become slightly magnetic after cold working.
Can 309S be welded?
Yes, it has good weldability using standard fusion techniques (TIG, MIG), but post-weld annealing is recommended for critical applications.
What standards apply to 309S cold rolled coils?
Common standards include ASTM A240, EN 10088-2 (as X12CrNi23-13), and JIS G4305.
